Power Quality and Energy Instruments Available from POWERetc
POWERetc offers an extensive line of instruments from the most popular manufacturers including Fluke, Dranetz, Power Standards Lab and PROSyS.
If you are familiar with a particular product and you’re sure it can handle the task you have at hand, then just scroll down this list and select the product you want.
If, on the other hand, you are not sure what you need or want to explore alternatives, then we suggest you go to our selection guide where we will walk you through a series of basic questions to help you arrive at the right tool for your task.
Selection Guide
The Dranetz HDPQ® Xplorer Plus (portable) power quality analyzer represents the top of the line in the Dranetz HDPQ Plus family of products. It is a true hand-held portable instrument with a built in 7″, tablet-like touch LCD display and is simply the best PQ monitor available from Dranetz.
The POWERetc-exclusive package includes a complete set of voltage and current probes plus a cellular modem. Thanks to the modem, product setup and data gathering can all be made remotely. That means you’ll only need to go to the jobsite twice – once to install and once to take down. That’s a great economic benefit in any climate but even more valuable while we all strive to stay safe from COVID-19.
Package
Basic Package |
Pricing |
Cellular Modem-Equipped Power Quality Analyzer Complete with the
|
Rent: Purchase: |
Electrical Characteristics
Frequency | Range: 16-25HZ, 42.5-69Hz Resolution +/- 0.01 Hz |
Voltage | Differential Voltage: 512 s/c, 16 bit resolution 0-1000Vrms, AC/DC, ±0.1 % reading, <40V ±0.5%FS IEC 61000-4-30 Class A: 60-1000Vrms, ±0.1 % of Udin, range of 10%-150% of Udin Transients: 0-1414Vpk, ±0.2 % of Udin |
Power factor | Current: 512 s/c, 16 bit resolution Range probe dep., AC/DC, +/- 0.1% reading +/- 0.05% FS |
Physical Characteristics
Dimensions & Weight | Size: (10″w x 8″h x 2.75″d), (25.4cm x 20.3cm x 7.0cm) Weight: 4.2lbs, 2kg |
Operating environment | Temp: 0 to 50 deg C ( 32 to 122 deg F) Humidity: 10-90% non condensing |
Storage environment | Temp: -20 to 55 deg C (-4 to 131 deg F) Humidity: 10-90% non condensing |
The Dranetz HDPQ® Visa offers the best value in a Power Quality, Demand, and Energy analyzer from Dranetz. The special coniguration avaliable exclusivly from POWERetc comes equipped with a cellular modem. The time and labor saving feature enables remote set up and operation of the instrument.
The Dranetz HDPQ Visa merges the state-of-the-art power monitoring capabilities, with ‘best in class’ communication capabilities to provide a revolutionary monitoring experience. The Dranetz HDPQ Visa enables users to review data and change settings remotely from virtually any smartphone, tablet mobile device, as well as with traditional PC and MAC laptops and desktops. Just hook up the instrument, close the cabinets to the ‘safe’ environment, and use either the VNC interface or our Dranetz HDPQ Apple or Android Apps for remote control from anywhere via the unit's cellular modem.
The 8 independent channel, 3-phase Dranetz PowerGuide 4400 is one of the first family of Dranetz advanced power monitoring instruments to incorporate a color touch screen into its lightweight design. Automated setups provide instant detection of circuits and configurations, ensuring that the instrument is ready to successfully collect data. Users can select the length and mode of data collection, including troubleshooting, data logging, power quality surveys, energy and load balancing.
A copy of POWERetc's CDROM based training in the use of the instrument and software is included.
Electrical Characteristics
Voltage Input | Type: 4 full differential, DC coupled Channels A, B, C, D Input Range: 10 - 600 Vrms Impedance : 16 M Ω Line to Line RMS Accuracy: ±0.1% of Reading, ±0.05% Full Scale, over 7KHz bandwidth (1 second rms readings) |
Current Input | Type: 4 full differential, DC coupled. Channels A, B, C, D Input Range: 10 - 200% of Rated Probe Input (Dranetz-BMI probes) Impedance : 400 k Ω RMS Accuracy: ±0.1% of Reading ±0.05% Full Scale plus Probe Accuracy, 3KHz bandwidth (1 second rms readings) |
Frequency | Two ranges, user selectable.
|
Physical Characteristics
Dimensions & Weight | 12” Width x 2.5” Height x 8” Depth (30 x 6.4 x 20.3 cm) Weight : 3.8 pounds |
Opereating Environment | Temp: 0 to 50 °C (32 to 122 °F) Humidity: 0 to 95% non-condensing; indoor use Altitude : 2000 m (6560 ft) maximum |
Enclosure Protection | Weather Resistant Enclosure: This weatherproof enclosure is designed to keep the 4400 and its cable connections in place. It is made of fiber glass and is intended for indoor and outdoor use. This enclosure is sturdy, lightweight, corrosion-resistant. It is able to withstand windblown dust, rain, splashing water, and ice formation. |
The Dranetz PowerXplorer PX5 integrates the most advanced feature set available in a power monitoring instrument, with an easy-to-navigate, color graphical user interface. With high-speed sampling and data capture (1 microsecond/channel), this 8-channel workhorse simultaneously captures and characterizes thousands of parameters, using a range of standard and customizable operating modes. The unique measurement capabilities of the PowerXplorer include capture of low-medium-high frequency transients through peak, waveshape, rms duration and adaptive high-speed sampling, as well as power measurements to clearly characterize non-sinusoidal and unbalanced systems.
Electrical Characteristics
Voltage Input | Type: 4 full differential, DC coupled Channels A, B, C, D Input Range: 10 - 600 Vrms Impedance : 16 M Ω, minimum, Input to Input RMS Accuracy: ±0.1% of Reading, ±0.05% Full Scale, over 7KHz bandwidth (1 second rms readings) Transient Accuracy: ±10% of Reading, ±0.5% Full Scale for Pulses > 10uS |
Current Input | Type: 4 full differential, DC coupled. Channels A, B, C, D Input Range: 10 - 200% of Rated Probe Input (Dranetz probes) Impedance : 400 k Ω RMS Accuracy: ±0.1% of Reading ±0.05% Full Scale plus Probe Accuracy, 3KHz bandwidth (1 second rms readings) Transient Accuracy: ±10% of Reading, ±0.5% Full Scale over 1MHz bandwidth (option) > 10uS |
Frequency | Three ranges, user selectable.
|
Physical Characteristics
Dimensions & Weight | 12” Width x 2.5” Height x 8” Depth (30 x 6.4 x 20.3 cm) Weight : 4.2 pounds (1.9 kg) |
Opereating Environment | Temp: 0 to 50 °C (32 to 122 °F) Humidity: 0 to 95% non-condensing; indoor use |
Enclosure Protection | Weather Resistant Enclosure: This weatherproof enclosure is designed to keep the PX5 and its cable connections in place. It is made of fiber glass and is intended for indoor and outdoor use. This enclosure is sturdy, lightweight, corrosion-resistant. It is able to withstand windblown dust, rain, splashing water, and ice formation. |
3-Phase Flexible Current Probe with 3VDC Full-Scale Output available in 24, 36 and 48 inch probe cable lengths.
Electrical Characteristics
Current Ranges | 60A / 600A / 6000A AC RMS (selectable via rotary switch) |
Output Sensitivity | 50mV / 5mV / 0.5mV per A (AC coupled) |
Accuracy (at 25°C) | ± 1% of reading ± 0.1A (60A range) ± 1% of reading ± 1A (600A / 6000A range) |
Physical Characteristics
Probe and Cable Material | Alcryn 2070 NC LATENE 7H2W V0 |
Probe Cable Length | 610mm (24”) / 915mm (36”) / 1220mm (48”) |
Probe Cable Diameter | 9.9mm (nominal) |
Cable Length | 2m (Probe to Integrator box) |
Output | 0.5m long lead terminated with 3 X safety male BNC |

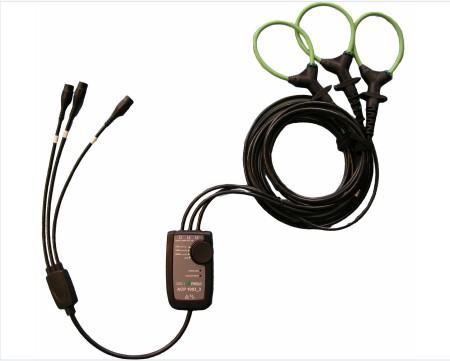

3-Phase Flexible Current Probe with 3VDC Full-Scale Output available in 24, 36 and 48 inch probe cable lengths
Electrical Characteristics
Current Ranges | 30A / 300A / 3000A AC RMS (selectable via rotary switch) |
Output Sensitivity | 100mV / 10mV / 1mV per A (AC coupled) |
Accuracy (at 25°C) | ± 1% of reading ± 0.1A (30A range) ± 1% of reading ± 1A (300A / 3000A range) |
Physical Characteristics
Probe and Cable Material | Alcryn 2070 NC LATENE 7H2W V0 |
Probe Cable Length | 610mm (24”) / 915mm (36”) / 1220mm (48”) |
Probe Cable Diameter | 9.9mm (nominal) Cable Length 2m (Probe to Integrator box) |
Output | 0.5m long lead terminated with 3 X safety male BNC |
1-Phase Flexible Current Probe [Compatible with Fluke 1750 and RPM Power Recorders] available in 24, 36 and 48 inch probe cable lengths
Electrical Characteristics
Current Ranges | 100A / 1000A / 5000A AC RMS (selectable via rotary switch) |
Output Sensitivity | 20mV / 2mV / 0.4mV per A (AC coupled) |
Accuracy | (at 25°C) ± 1% of reading ± 0.1A (100A range) ± 1% of reading ± 1A (100A / 5000A range) |
Physical Characteristics
Probe and Cable Material | Alcryn 2070 NC LATENE 7H2W V0 |
Probe Cable Length | 610mm (24”) / 915mm (36”) / 1220mm (48”) |
Probe Cable Diameter | 9.9mm (nominal) |
Cable Length | 2m (Probe to Integrator box) |
Output | 0.5m long lead terminated with a 6-pin male LEMO |
Single Phase Flexible AC Current Probe with 3 VDC Full-Scale Output available in 24, 36 and 48 inch probe cable lengths
Electrical Characteristics
Current Ranges | 60A / 600A / 6000A AC RMS (selectable via rotary switch) |
Output Sensitivity | 50mV / 5mV / 0.5mV per A (AC coupled) |
Accuracy | (at 25°C) ± 1% of reading ± 0.1A (60A range) ± 1% of reading ± 1A (600A / 6000A range) |
Physical Characteristics
Probe and Cable Material | Alcryn 2070 NC LATENE 7H2W V0 |
Probe Cable Length | 610mm (24”) / 915mm (36”) / 1220mm (48”) |
Probe Cable Diameter | 9.9mm (nominal) Cable Length 2m (Probe to Integrator box) |
Output | 0.5m long lead terminated with a safety male BNC |
3-Phase 24" Flexible Current Probe with 3VDC Full-Scale Output.
24" circumference.
New design with 3 ranges: 600 A / 1200 A / 3000 A.
New power supply - battery or instrument power.
Electrical Characteristics
Current Ranges | 600A / 1200A / 3000A AC RMS |
Output Sensitivity | 5mV / 2.5mV / 1 mV / A [x200/x400/x1000] |
Accuracy (at 25°C) | ±1% of reading ± 1A |
Physical Characteristics
Probe and Cable Material | Alcryn 2070 NC LATENE 7H2W V0 |
Probe Cable Length | 610mm (24”) / 915mm (36”) / 1220mm (48”) |
Probe Cable Diameter | 9.9mm (nominal) | Cable Length 2m (Probe to Integrator box) |
Output | 0.5m long lead terminated with 3 X safety male BNC |

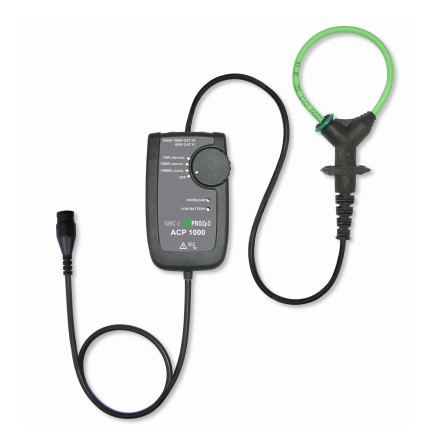

Single Phase Flexible AC Current Probe with 3 VDC Full-Scale Output available in 24, 36 and 48 inch probe cable lengths
Electrical Characteristics
Current Ranges | 30A / 300A / 3000A AC RMS (selectable via rotary switch) |
Output Sensitivity | 100mV / 10mV / 1mV per A (AC coupled) |
Accuracy | (at 25°C) ± 1% of reading ± 0.1A (30A range) ± 1% of reading ± 1A (300A / 3000A range) |
General Characteristics
Probe and Cable Material | Alcryn 2070 NC LATENE 7H2W V0 |
Probe Cable Length | 610mm (24”) / 915mm (36”) / 1220mm (48”) |
Probe Cable Diameter | 9.9mm (nominal) |
Cable Length | 2m (Probe to Integrator box) |
Output | 0.5m long lead terminated with a safety male BNC |
